KNA Pickups DB-1 bass pickup
KNA Pickups DB-1 bass pickup
KNA Pickups DB-1 bass pickup
KNA Pickups DB-1 bass pickup

KNA Pickups DB-1 bass pickup

$99.00 USD
$99.00 USD
Save 0
Sold out
Free Shipping $99+ within the lower 48 States
30-Day Returns Satisfaction or your money back
Secure Checkout Use your preferred trusted payment method
Worldwide Shipping Shipping, tax & duty shown at checkout
Quality Assurance All instruments inspected & play-tested
Customer Support We're always here to help. Contact us!

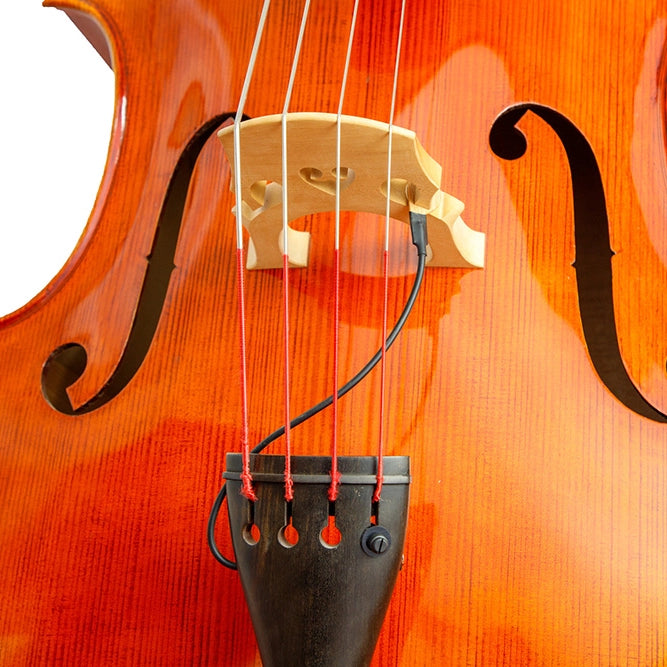

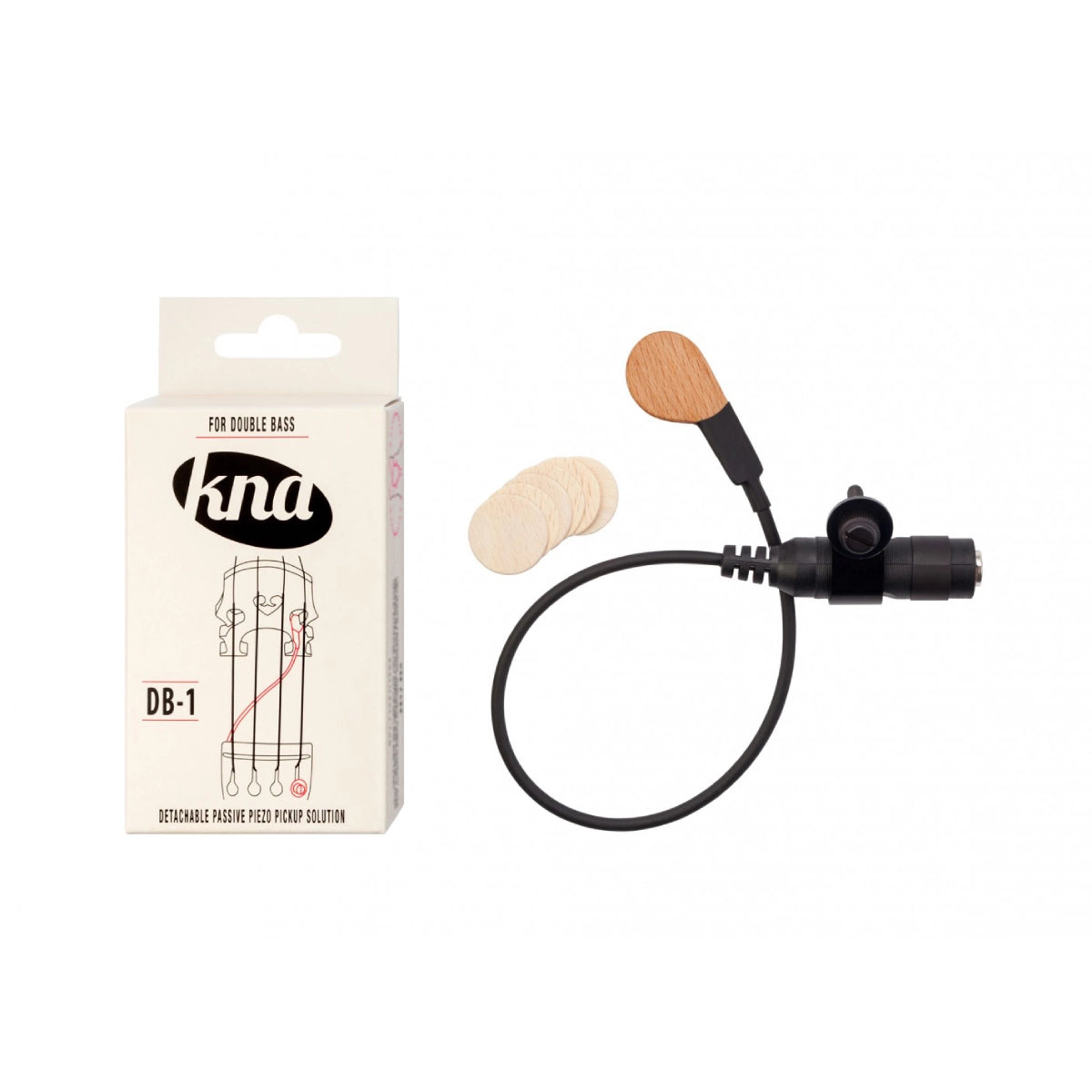

The KNA DB-1 is a portable bridge-mounted piezo pickup  for double bass with tailpiece-mounted output jack. DB-1 faithfully reproduces the breadth of tone and dynamic range of your instrument without modification.

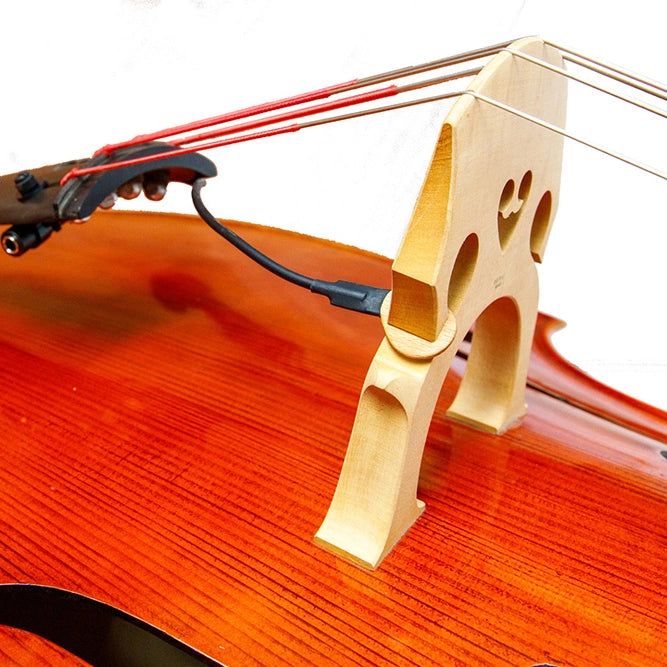

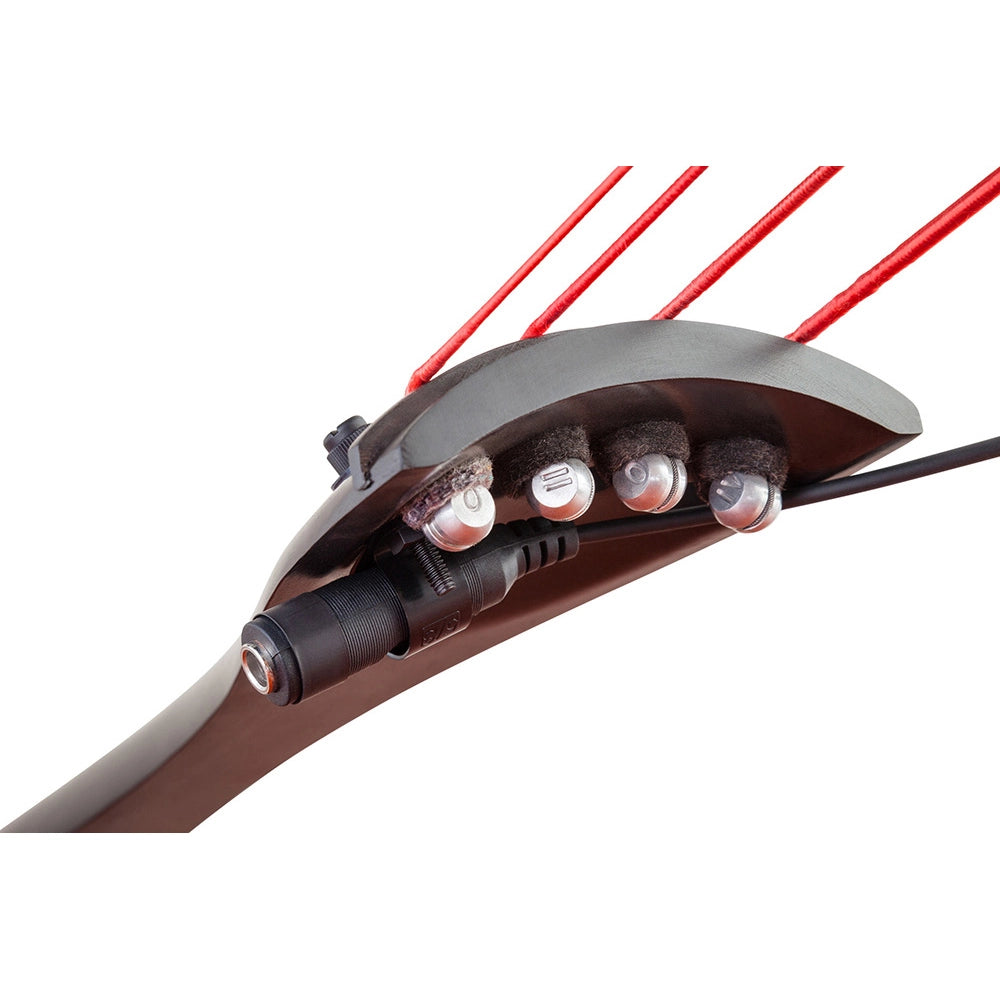

A piezo sensor installs safely in the eye slot of the bridge, held in place via friction and the 1/4" jack housing secures non-destructively to the tailpiece. The pickup comes with additional neatly-finished shim discs for fitting the sensor in narrow bridges.

Specifications
Wood White beech
Maximum Impedance 800 Ω

Measurements
Specified part Size in MM (from*) Size in MM (to*) Size in INCH (from*) Size in INCH (to*)
Pickup sensor side diameter 21,0 21,1 0,827 0,831
Pickup sensor with extention diameter  26,2 26,3 1,031  1,035
Pickup sensor side diameter 21,0  21,1 0,827 0,831
Lead wire length 260,0 - 10,236 -
Pickup sensor thickness 2,6 2,7 0,102 0,106
Jack housing length 61,0 62,0 2,402 2,441
Shim diameter 20,0 - 0,787 -
Thin shim thickness 0,6 - 0,022 -
Thick shim thickness 1,0 - 0,039 -
*KNA handmade pickups may vary slightly in size due to the nature of the fabrication
