Xvive U9 Violin Wireless System
Roam freely and connect with your audience while retaining the highest quality amplified sound! The Xvive U9 combines a high-end gooseneck microphone with wireless transmission, so you can play your acoustic violin anywhere at any volume, cable-free!
The U9's microphone is perfectly voiced for violin and viola. With a max SPL of 142 dB and a sensitivity of -45 dB, you’ll hear the natural sound of your instrument wherever you go.
The U9 system uses the 2.4 GHz band, has 6 channels to ensure you always have options if you encounter interference, and the wireless range is up to 90 feet!
The U9 set comes with a strong and sturdy clip that attaches the transmitter and gooseneck microphone to the body of your violin or viola. It will fit on on instrument bodies that are between 30 mm and 40 mm thick (1.18” – 1.57”)
The gooseneck microphoned is designed to be adjustable, allowing you to position it as desired to get the sound that best captures the tone of your instrument.

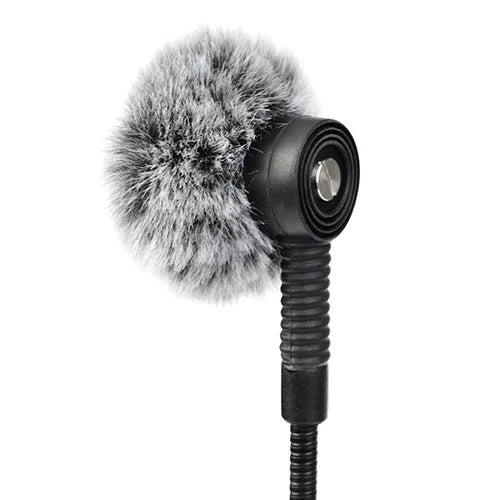

Since with a wireless unit you will be moving around more as you perform, sometimes you may want to attach the included windscreen or windshield to filter out wind noise!
Charge the transmitter and receiver at the same time using the dual USB-C cable and any 5V 2A USB power supply. Charging for two and a half hours gets you 5 hours of play time; 1.25 hours gets you 2 hours of play time, and 30 min of charging gets you 1 hour.
The U9 set includes:
- Microphone
- Transmitter
- Receiver
- Dual USB-C Charging Cable
- Clip
- Windscreen
- Windshield
- Manual
Microphone Specifications
|
TYPE |
Supercardioid |
|
DIMENSIONS |
20 mm x 28 mm x 190 mm |
|
WEIGHT |
35 g |
|
OUTPUT |
1/8” balanced male TRS (Tip = +3.3V, Ring = -3.3V, Sleeve = ground) |
|
SENSITIVITY |
-45 dB |
|
MAX. SPL |
142 dB |
Wireless System Specifications
|
TUNING BANDWIDTH |
2400 – 2483.5 MHz |
|
WORKING RANGE |
90 ft (indoors) |
|
FREQUENCY RESPONSE |
20 Hz – 20 kHz (-3dB) |
|
DYNAMIC RANGE |
108 dB |
|
SIGNAL-TO-NOISE RATIO |
108 dB |
|
RF SENSITIVITY |
-88 dBm |
|
TOTAL HARMONIC DISTORTION |
0.2% |
|
RF OUTPUT POWER |
10 mW E.I.R.P. max |
|
OPERATING TEMPERATURE RANGE |
0°C to 45°C |
|
CHANNEL COUNT |
6 |
|
CHARGING VOLTAGE / CURRENT |
5V / 2A |
|
BIT DEPTH / SAMPLE RATE |
24-bit / 48 kHz |
|
LATENCY |
less than 5 ms |
Transmitter Specifications
|
DIMENSIONS |
40 mm x 29 mm x 50 mm |
|
WEIGHT |
35 g |
|
AUDIO INPUT CONNECTOR |
1/8” balanced TRS female |
|
MAXIMUM INPUT LEVEL |
3.7 Vp-p |
|
PHANTOM POWER |
± 3.3V |
|
USB TYPE |
USB Type-C |
|
ANTENNA IMPEDANCE |
50 Ω |
|
ANTENNA TYPE |
1/4 wave sleeve dipole, non-removable |
|
NUMBER OF ANTENNAS |
1 |
Receiver Specifications
|
DIMENSIONS |
31 mm x 29 mm x 98 mm |
|
WEIGHT |
92 g |
|
OUTPUT IMPEDANCE |
470 Ω (1 kHz) |
|
OUTPUT CONNECTOR |
XLR balanced male |
|
MAXIMUM OUTPUT LEVEL |
3.6 Vp-p |
|
USB TYPE |
USB Type-C |
|
ANTENNA IMPEDANCE |
50 Ω |
|
ANTENNA TYPE |
1/4 wave sleeve dipole, non-removable |
|
NUMBER OF ANTENNAS |
2 |
